Description

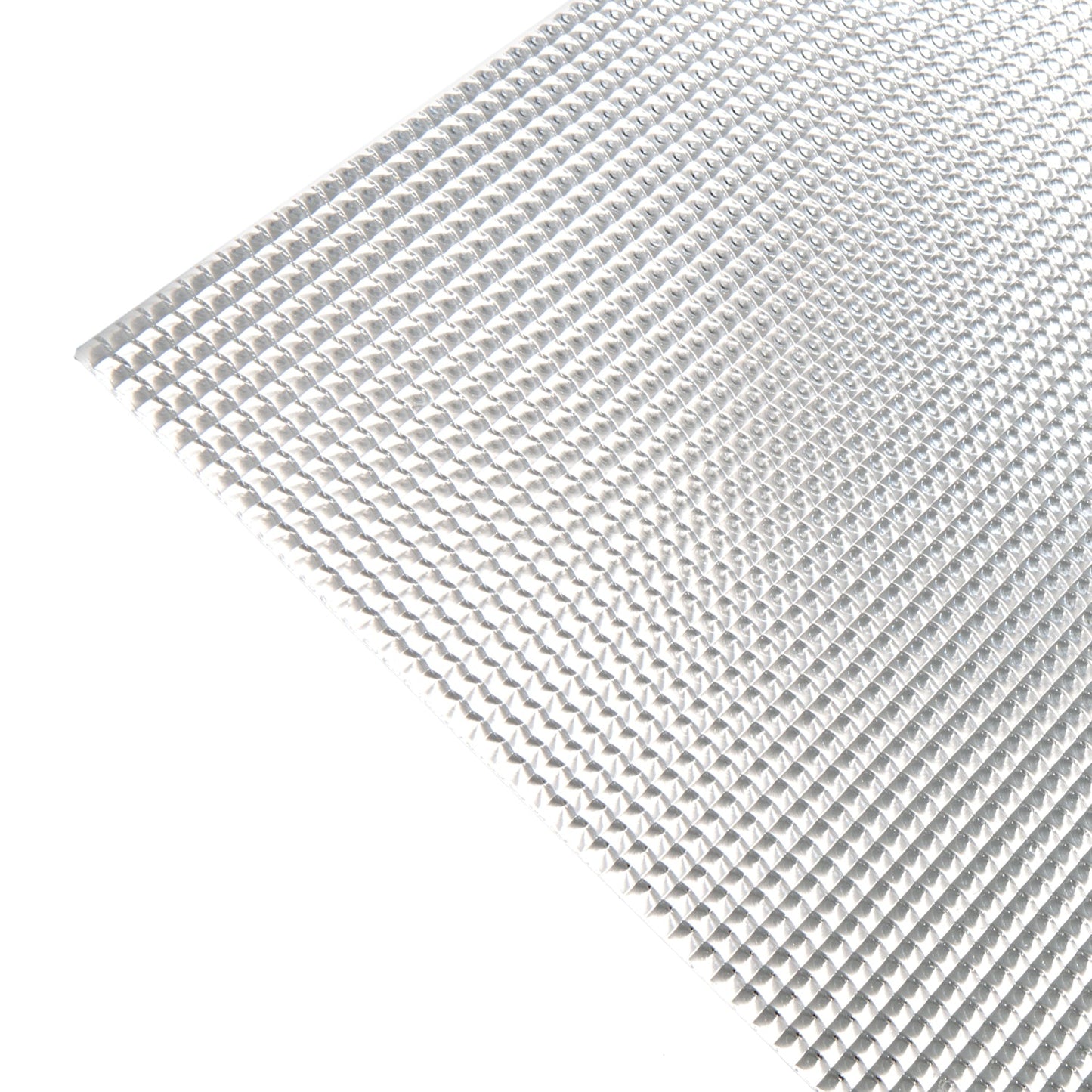

The KSH-19 Acrylic Lighting Panel is a low-brightness diffuser designed for environments where glare control and visual comfort are top priorities. Using a fine small-cell prismatic pattern, KSH-19 reduces lamp image visibility while maintaining consistent, even illumination across the fixture.
Made from durable, non-yellowing acrylic, this panel provides long-term optical stability and impact resistance superior to traditional polystyrene options. KSH-19 is manufactured slightly undersized—23.75? x 23.75? and 23.75? x 47.75?—to ensure a clean, drop-in fit for standard 2' x 2' and 2' x 4' ceiling grid systems.
Features
- Fine prismatic pattern engineered for low brightness and glare reduction
- Minimizes visible lamp images, especially with high-output LEDs
- Undersized for easy installation: 23.75? × 23.75? and 23.75? × 47.75?
- Non-yellowing acrylic ensures long-term clarity and performance
- More durable and impact-resistant than polystyrene diffusers
- Compatible with LED and fluorescent systems
- Lightweight and easy to cut for custom fixture sizes
- Ideal for applications requiring controlled, comfortable lighting
Applications of KSH-19 Acrylic Panels
- Office workspaces and conference rooms
- Retail stores and commercial interiors
- Educational and institutional buildings
- Healthcare and medical facilities
- LED retrofit projects requiring enhanced glare control
- General ambient lighting in 2' × 2' and 2' × 4' grid systems
- Environments that benefit from softer, controlled illumination
Frequently Asked Questions
What makes KSH-19 different from KSH-23?
KSH-19 features a tighter, small-cell prismatic pattern designed for lower brightness and stronger glare control. KSH-23 provides wider-angle diffusion with higher brightness.
Are the panels really smaller than 24×24 and 24×48?
Yes. The panels are intentionally made at 23.75? × 23.75? and 23.75? × 47.75? to ensure proper drop-in fit for standard ceiling grids.
Is KSH-19 suitable for LED lighting?
Absolutely. The fine prismatic design reduces glare and helps blend LED light sources, making it ideal for modern LED retrofits.
Can I cut KSH-19 to a custom size?
Yes. The acrylic sheet can be cut using standard tools such as table saws or scoring knives to fit custom fixtures.
